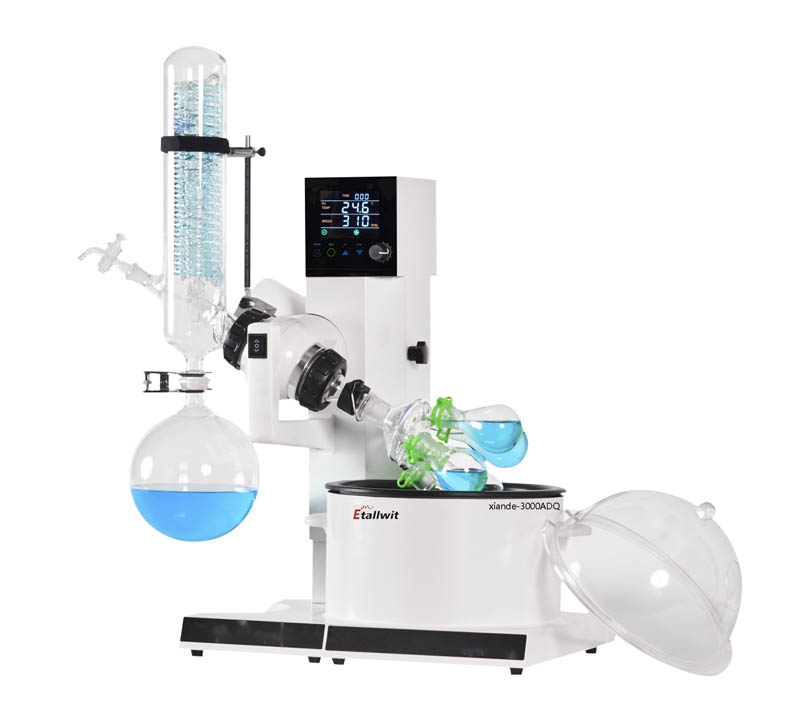

3L Water Bath Rotary Evaporator with Multi-Branch Condenser

• Etallwit's 3L Water Bath Rotary Evaporator is a compact, user-friendly, and high-performance evaporation system specially designed for simultaneous multi-sample processing. Supporting five sample bottles per cycle, this rotary evaporator offers enhanced productivity in a streamlined footprint. Equipped with an LCD digital display, PID temperature controller, Teflon-coated corrosion-resistant bath, and advanced vacuum compatibility, it delivers precision, safety, and efficiency for laboratory evaporation tasks.
• Three available configurations—50mL×5, 100mL×5, and 150mL×5—allow flexible sample loading for diverse concentration needs. Whether for solvent recovery, drying, or distillation, this system provides superior performance with forward/reverse rotation, overheating protection, and optional vacuum controller integration.

Features:

Simultaneous Processing: Supports evaporation of 5 individual samples simultaneously, improving workflow efficiency.

Precise Control: LCD display with PID microprocessor ensures accurate speed (0–310 rpm) and temperature (RT–99°C ±0.5°C) regulation.

Safe & Durable: Water bath made of high-temp resistant Teflon composite; insulated case and safety handle prevent burns.

Bidirectional Rotation: Intermittent forward/reverse rotation (adjustable 0–60s) ideal for powder drying or residue-free evaporation.

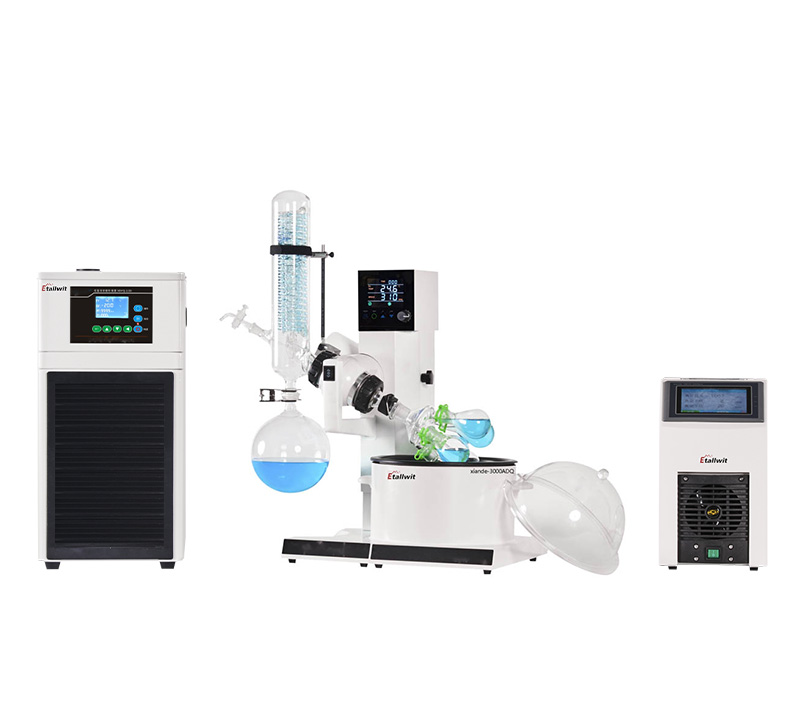

Advanced Vacuum Option: Optional built-in vacuum controller enables precise control from 0 to -0.1 MPa (0–1013 mbar), accuracy ±1 mbar.

Anti-Spill Design: Protective thermal cover with anti-boiling and anti-splash functions included.

Quick-Lift Mechanism: Dual-mode (touch + handle) lift with 150 mm stroke and 60 mm fixed safety stop.

High-Efficiency Condenser: Vertical condenser with large condensing surface, integrated anti-backflow structure.

Quick Bottle Release: Push-handle mechanical mount makes loading and unloading safer and more efficient.
