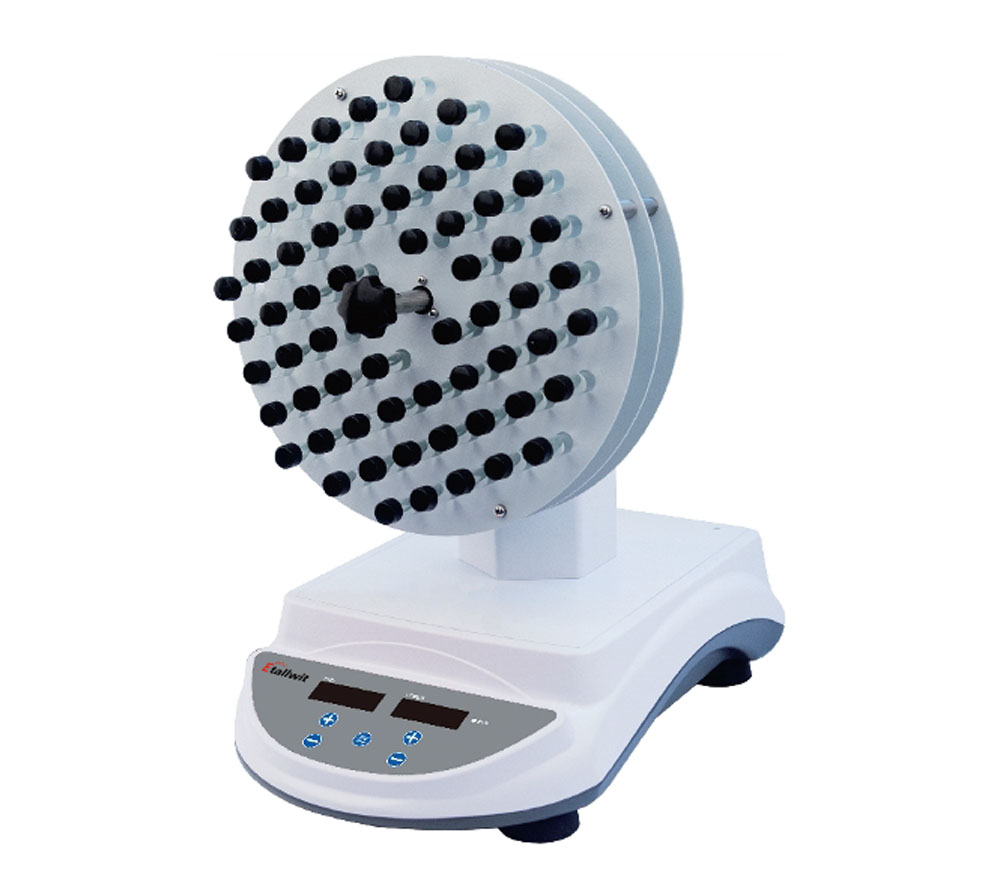

Large Capacity Tube Rotator
Speed：5–80rpmTilt Angle：95°–180° Display：LEDCarousel Diameter：290mmPower Supply：AC100–240V, 50/60HzPower Consumption：8WAmbient Temp. Range：5°C–40°C catalogEtallwit High-Capacity Tube Rotator for Large Volume Sample Mixing
Description:
Designed for high-throughput labs, the High-Capacity Tube Rotator accommodates up to 64×18.5mm tubes with powerful yet quiet operation. It supports programmable tilt angle (95°–180°), timer mode, and variable speed (5–80rpm), all via LED digital interface.
Features:
5–80rpm variable speed for wide mixing needs

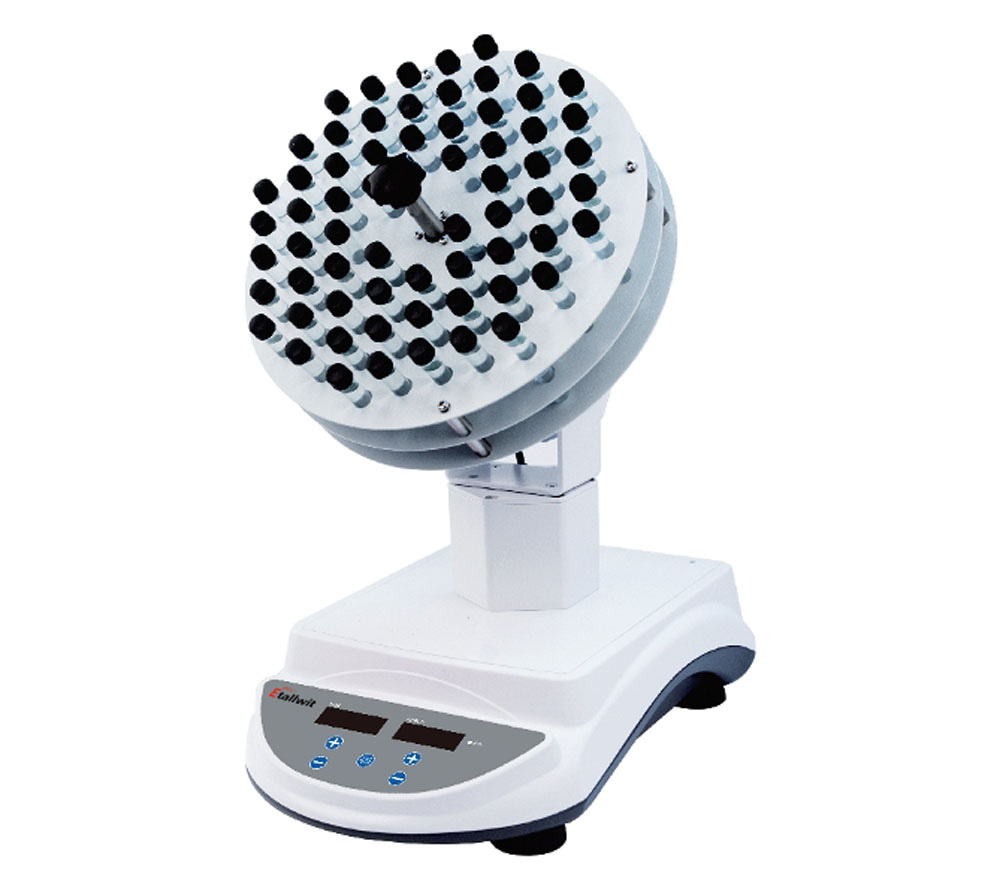

Six preset tilt angles: 95°, 112°, 129°, 146°, 163°, 180°
Programmable timing up to 99h59min with auto-stop

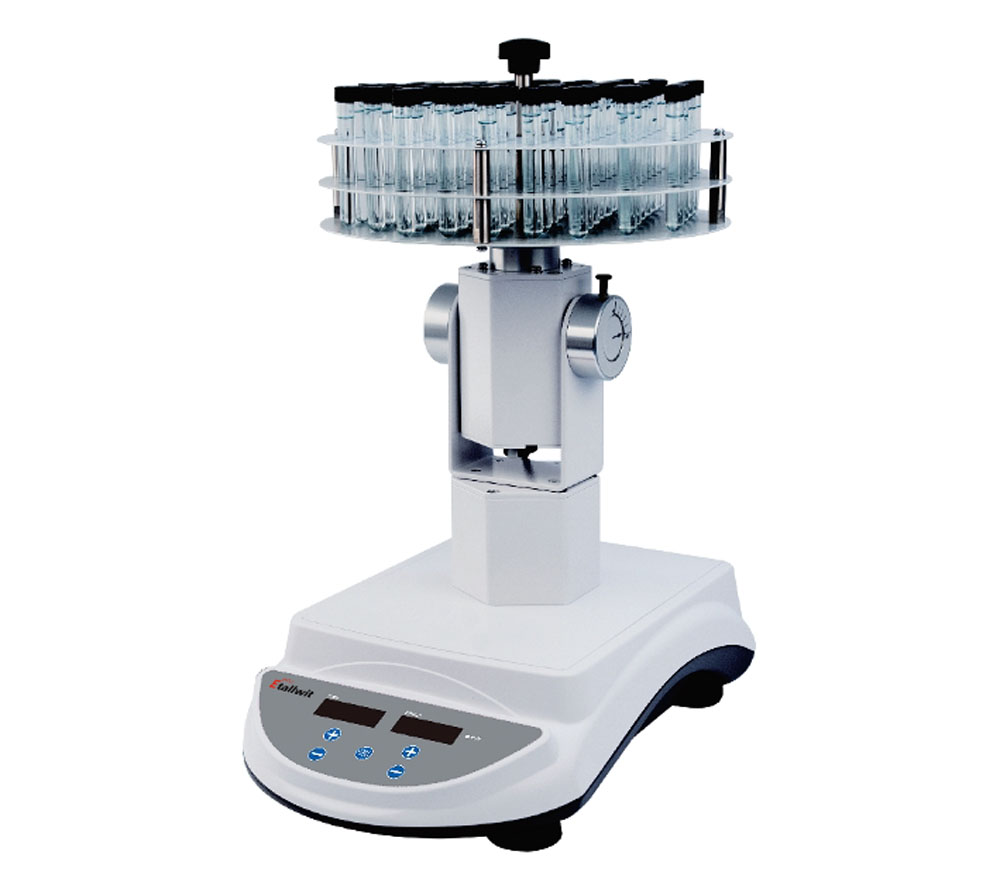

Large capacity drum for 15ml, 50ml, and culture tubes
Durable design ideal for biobanks and sample processing
LED display and intuitive touch buttons
Specifications:
Parameter | Details |
Speed | 5–80rpm |
Tilt Angle | 95°–180° (6 steps) |
Timer Range | 0–99h59min |
Display | LED |
Carousel Diameter | 290mm |
Tube Capacity (Optional) | 15x50mL / 30x15mL / 10×10/15mL + 20×5/7mL / 64xØ18.5mm Culture Tubes / 64xØ14mm Culture Tubes |
Power Supply | AC100–240V, 50/60Hz |
Power Consumption | 8W |
Ambient Temp. Range | 5°C–40°C |
Relative Humidity | ≤80% |
Dimensions (L×W×H) | 440×296×367mm |
Net Weight | 7.1kg |
Protection Class | IP21 |
Warranty | 1 year |
Certifications | cCSAus, CE, RoHS, WEEE |
Applications:
High-volume clinical diagnostics and sample incubation
Biobanks requiring large-scale tube mixing
Pharmaceutical quality control and reagent homogenization

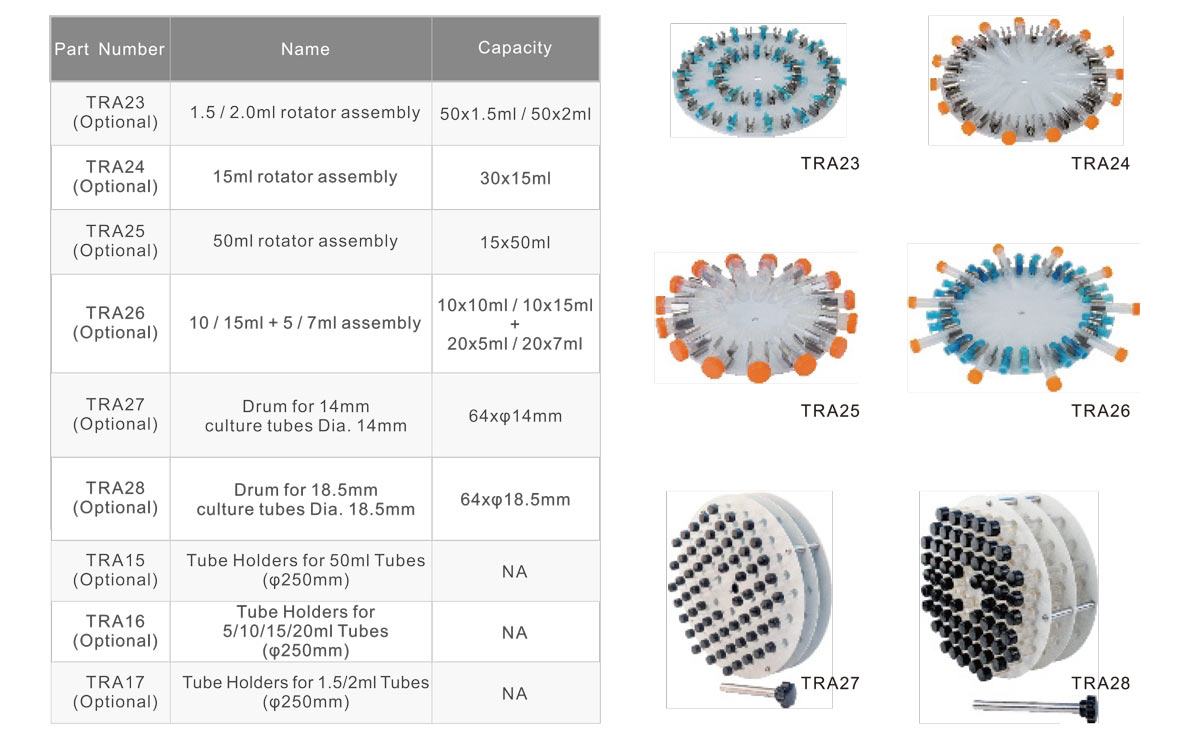

Accessories Specifications：
