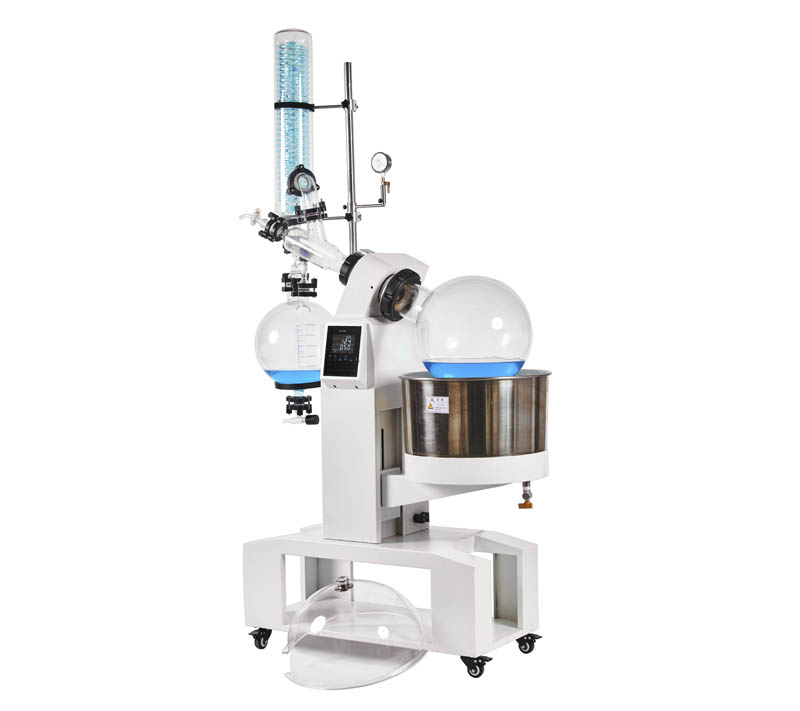

20L Water Bath Rotary Evaporator
Lifting range ：Automatic cantilever lift(0～190mm) Evaporation capability：MaX.5L/H(H2O)Ultimate vacuum ：8mbarRotating speed ：10～130rpm/minHeating method：5KWFlask capacity range：5～20L catalogAdvanced Large-Capacity LCD Rotary Evaporator with Auto Lift and Safety Control
Features:
- This high-performance rotary evaporator features a large LCD interface and an integrated multifunctional control system designed for intuitive operation, precision evaporation, and enhanced laboratory safety. Engineered with a spacious 40L Teflon-coated heating bath, automatic cantilever lifting, and user-friendly safety mechanisms, it is ideal for high-throughput evaporation needs.
- The system supports forward/reverse rotation with customizable timing, PID-controlled temperature, and a vacuum level up to 8 mbar. The integrated vacuum controller and diaphragm pump can be conveniently placed in the base structure. Designed for safety, efficiency, and ease of maintenance, it is a reliable choice for demanding lab environments.
Features:
Intuitive LCD Interface: Large screen with menu navigation and rotary knob input simplifies operation and parameter adjustment.
Unmanned Safety Mode: Automatically stops operation and lifts the evaporation flask when timing ends or anomalies occur.
Forward/Reverse Intermittent Rotation: Programmable cycle (0–60s), ideal for powder drying and consistent solvent evaporation.
Auto Lifting System: Smooth cantilever-type lift with 0–190 mm range and built-in safe distance limit.
Durable Teflon Bath: 40L one-piece molded Teflon and 304 stainless steel pot offers high resistance to heat and corrosion; easy to clean and prevents cross-contamination.
Vacuum Integration Ready: Space-saving design accommodates diaphragm pump and controller in base structure.
Pressure Retaining Valve: Enables simultaneous solvent drainage without interrupting the vacuum process.
Comprehensive Safety Protection: Equipped with overload, overcurrent, dry heating sensor, fuse, and auto power-off with warning system.
Three-Reflux Condenser: Integrated vertical condenser with large cooling surface enhances evaporation efficiency and is easy to install.
Transparent Safety Cover: Prevents splashes, conserves heat, energy-efficient, and explosion-resistant.
Quick Bottle Release: Push-handle mechanical mount makes loading and unloading safer and more efficient.
