Digital Tube Rotator
Speed：2–80rpmTilt Angle：90°–180°Display：LCDTube Capacity：12×50ml, 18×15ml, 48×2ml,9×50ml,9×15ml + 12×2mlCarousel Diameter：250mmPower Supply：AC100–240V, 50/60HzPower Consumption：6W catalogEtallwit Digital Tube Rotator with Adjustable Speed and Timer
Description:
The Digital Tube Rotator offers flexible mixing for laboratories with digital speed control (2–80rpm) and programmable timing. With real-time LCD display and adjustable tilt angle (90°–180°), it provides enhanced control and efficiency.
Features:
Variable speed from 2 to 80rpm for sensitive samples
LCD digital display with timer (up to 99h59min)
Adjustable tilt angle for optimal rotation flow
Compatible with various tube holders and accessories
Works in cold rooms or incubators
Automatic stop function for timer completion
Specifications:
Parameter | Details |
Speed | 2–80rpm |
Tilt Angle | 90°–180° |
Speed Accuracy | ±1rpm |
Timer Range | 0–99h59min |
Display | LCD |
Tube Capacity (Optional) | 12×50ml, 18×15ml, 48×2ml,9×50ml,9×15ml + 12×2ml |
Carousel Diameter | 250mm |
Power Supply | AC100–240V, 50/60Hz |
Power Consumption | 6W |
Ambient Temp. Range | 5°C–40°C |
Relative Humidity | ≤80% |
Dimensions (L×W×H) | 334×215×405mm |
Net Weight | 3.5kg |
Protection Class | IP21 |
Warranty | 1 year |
Applications:
Molecular biology and DNA extraction
Clinical tube-based sample mixing
Teaching and research labs requiring timed mixing

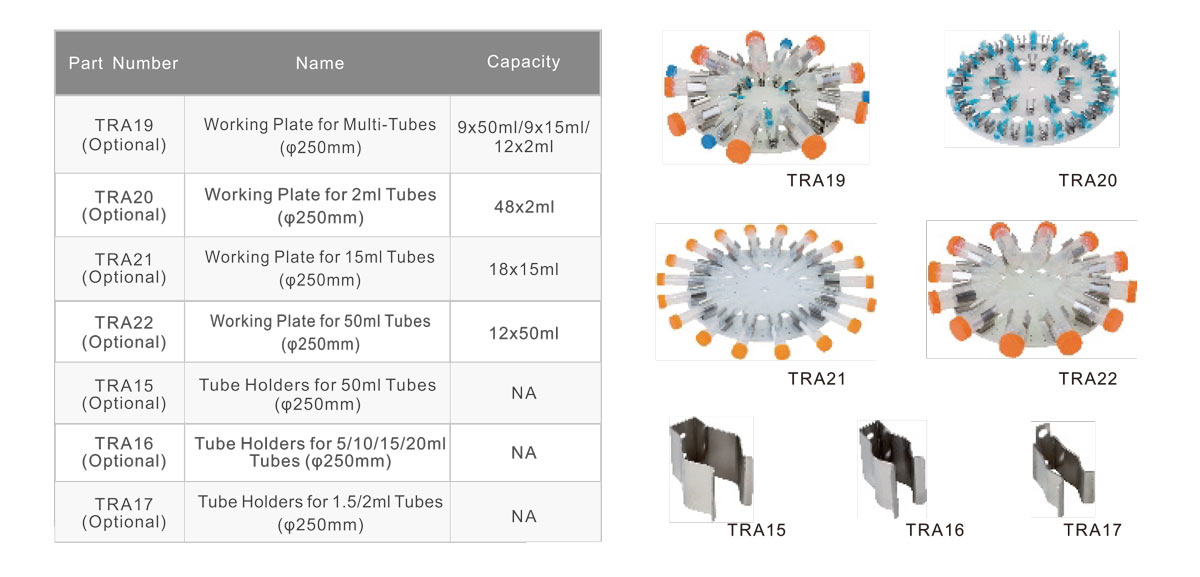

Accessories Specifications：
