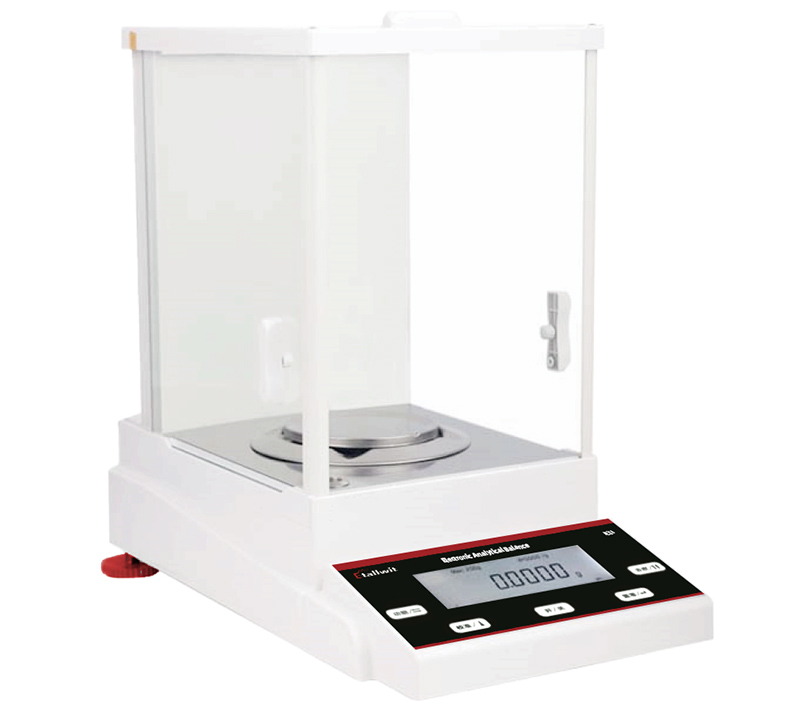

220g x 0.1 mg Electronic Analytical Balance
Weighing Capacity （ g ）：220Readability(mg)：0.1Repeatability( ≤ mg)：± 0.1Linearity( ≤ mg)：± 0.2Pan Size( mm ）：Ф 90Net Weight (kg)：5.5Gross Weight( kg)：7.5Dimension （ mm ）：365 × 223 × 338Model：EX-SA224 catalog220g x 0.0001g Analytical Balance | High Precision 0.1mg Digital Lab Scale for Accurate Weighing
The 220g x 0.0001g Analytical Balance from Etallwit Scientific is engineered for precision and reliability, offering advanced capabilities for highly accurate weighing applications. With a readability of 0.0001g (0.1mg) and a 220g capacity, this analytical balance is perfect for laboratories requiring exact measurements, such as density determination and differential weighing. The balance combines electromagnetic force balance sensor, dynamic temperature compensation, and built-in overload protection for precise and consistent readings. It is suited for applications in scientific research, pharmaceutical businesses, and educational organizations.
Features
· Precision Weighing: 0.0001g readability (0.1mg) with a capacity of up to 220g for ultra-accurate measurements.
· Electromagnetic Force Balance Sensor: Offers high sensitivity and fast stabilization, ensuring precise results in a variety of applications.
· Advanced Overload Protection: The built-in overload protection prevents damage to the balance, extending its lifespan.
· Dynamic Temperature Compensation: Automatically adjusts for temperature variations, ensuring consistent and reliable results.
· Large Backlit LCD Display: The easy-to-read, large display provides clear readings under any lighting condition.
· Touch Button Interface: High-sensitivity, user-friendly touch buttons for smooth operation.
· Glass Windshield with Transport Lock: A four-side transparent glass shield protects samples from environmental influences, while the transport lock secures the balance during storage or transport.
· Versatile Functions: Supports unit conversions (grams, ounces, carats, etc.), percentage weighing, and counting functions, offering flexibility for various tasks.
· RS232 and USB Connectivity: Allows seamless data transfer and remote operation for integration into laboratory systems.
· Stable Aluminum Base: Provides a vibration-resistant platform, ensuring stability for precise measurements.
Compliance
Meets ISO and CE standards, ensuring the balance adheres to international quality and safety requirements.

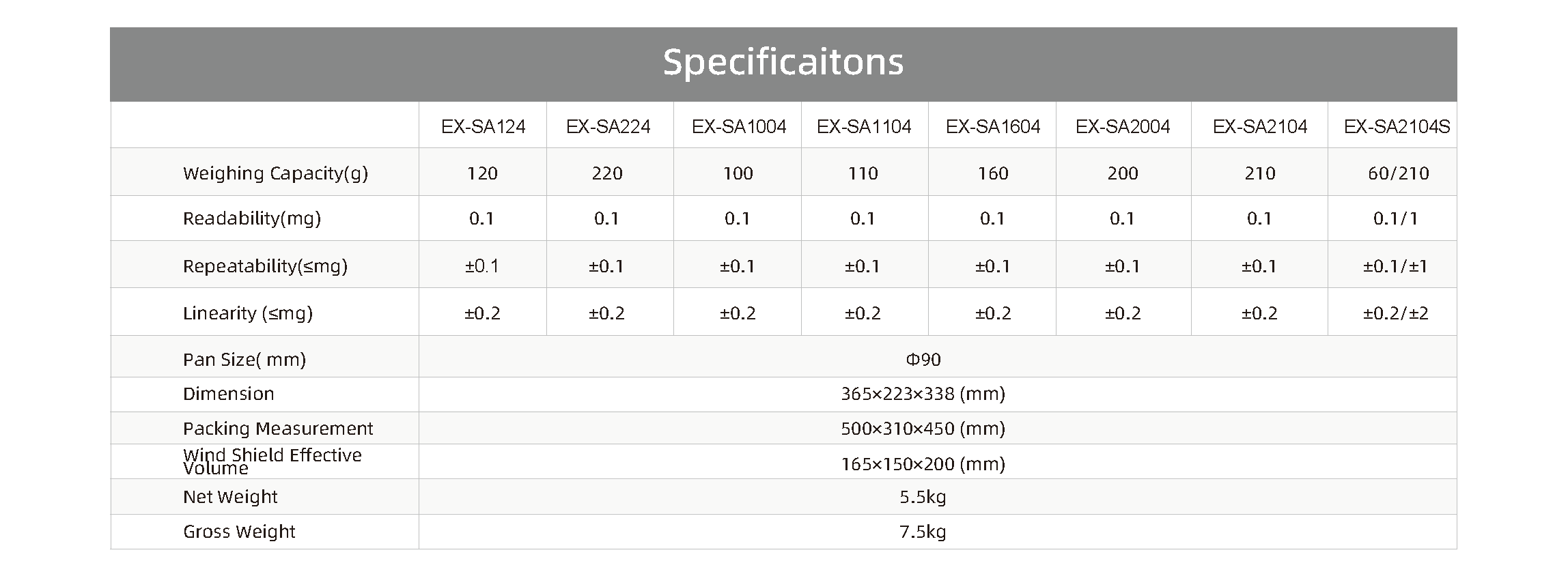

Specifications
Specification | Details |
Model | EX-SA224 |
Weighing Capacity | 220g |
Readability | 0.0001g (0.1mg) |
Display | Backlit LCD |
Sensor Type | Electromagnetic Force Balance Sensor |
Power Supply | AC/DC dual-use |
Dimensions (WxDxH) | 365 x 223 x 338 mm |
Packing Dimensions | 500 x 310 x 450 mm |
Windshield Dimensions | 165 x 150 x 200 mm |
Net Weight | 5.5 kg |
Gross Weight | 7.5 kg |
Interface | RS232, USB |
Advantage
· High Sensitivity for Small Samples: Ideal for weighing small quantities of substances, making it perfect for applications requiring high precision, such as pharmaceutical testing, research, and laboratory analysis.
· Protection for Longevity: The robust design with glass windshields and transport locks ensures that the balance is protected from environmental disturbances, such as air currents, dust, and vibrations, improving the accuracy and lifespan of the instrument.
· Versatility Across Applications: With its multiple functions like counting, percentage weighing, and unit conversion, this balance is suitable for a wide variety of laboratory needs, from research and educational experiments to industrial quality control.
