Function Introduction

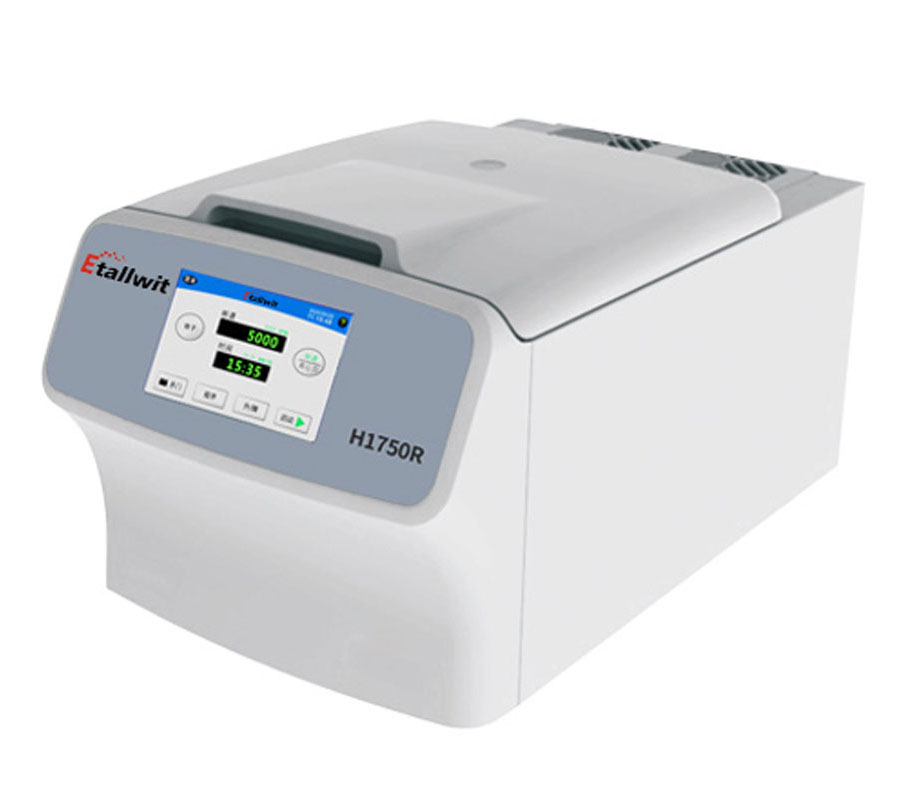

The H1750R high-speed benchtop refrigerated centrifuge is suitable for a variety of experimental applications, supporting a wide range of centrifugation needs such as microcentrifuge tubes, PCR tube arrays, microplates, 15/50mL centrifuge tubes, and blood collection tubes. Its high-performance design enables it to perform well in applications such as cell separation, DNA precipitation, and protein extraction, and is particularly suitable for laboratories that require compact and efficient equipment.
The H1750R high-speed desktop refrigerated centrifuge is designed for efficient and precise experimental needs and is suitable for many fields such as life sciences, molecular biology, genetic engineering, and pharmaceutical research and development.
Features/Advantages
7 inch HD touch screen : Equipped with an intuitive HD touch interface, it displays key parameters such as speed, temperature and centrifugal force in real time, making operation easy and improving user experience.
Precise temperature control system : The environmentally friendly variable frequency compressor unit supports precise temperature control from -20℃ to 40℃, ensuring that the sample is always kept within the set temperature range to achieve a stable centrifugal effect.
Multiple safety protections : With multiple safety functions such as overspeed, overtemperature, motor overheating, door cover self-locking and imbalance detection, the experimental process is safer and more reliable. Built-in electronic door lock and condensation water tank can effectively prevent condensation water from accumulating and extend the service life of the equipment.
Diverse rotor configurations : Supports 19 rotors of different capacities, including microtubes, PCR tubes, 50mL blood collection tubes, etc., to meet a wide range of experimental needs and truly achieve multiple uses with one machine.
Intelligent acceleration/deceleration curve : 11 acceleration curves and 12 deceleration curves are provided. You can customize the acceleration and deceleration time to prevent the sample from re-suspension and ensure the best separation effect.
Main technical parameters
· Maximum speed : 18,500 rpm
· Maximum relative centrifugal force : 29,302×g
· Maximum capacity : 4×100mL
· Temperature control accuracy : ±1℃, using fluorine-free refrigerant, environmentally friendly and efficient
· Noise : ≤62 dB(A), low noise operation, reducing interference to the experimental environment
| Brand | Etallwit |
|---|---|
| Maximum speed | 18500r/min |
| Maximum relative centrifugal force | 29302xg |
| Maximum capacity | 4×100ml |
| Speed accuracy | ±10r/min |
| Timing range | 1s~99min59s/1min-99h59min |
| Timing Mode | Start timing, speed timing, continuous timing mode |
| Temperature setting range | -20℃~40℃ |
| Temperature control accuracy | ±1℃ |
| Compressor unit | Inverter compressor unit |
| Machine noise | ≤62 dB(A) |
| Precooling | Yes |
| Rotor identification | Yes |
| Jog function | Yes |
| power supply | AC220V±22V 50/60Hz |
| Machine power | 1kW |
| Dimensions | 380×660×330 mm |
| Outer packaging size | 480×940×460 mm |
| weight | 62kg |
Rotor parameters
| Rotor Model | Rotor Type | Maximum speed (r/min) | Maximum centrifugal force (xg) | capacity |
|---|---|---|---|---|
| No.1 | Angle rotor | 17500 | 29302 | 24×1.5/2.0 ml |
| No.2 | Angle rotor | 15000 | 15840 | 12×5 ml |
| No.3 | Angle rotor | 13000 | 17370 | 12×10 ml |
| No.4 | Angle rotor | 13000 | 17947 | 6×50 ml |
| No.5 | Angle rotor | 12000 | 15292 | 6×50 ml (pointed) with 50 ml round bottom adapter |
| No.6 | Angle rotor | 10000 | 10744 | 4×100 ml |
| No.7 | Angle rotor | 14000 | 22140 | 30×1.5/2.0 ml |
| No.8 | Angle rotor | 13000 | 18525 | 48×1.5/2.0 ml |
| No.9 | Angle rotor | 13000 | 16020 | 6×8×0.2 PCR |
| No.10 | Capillary rotor | 13000 | 17369 | 24 capillaries |
| No.11 | Swing-out rotor | 13000 | 16816 | 24×1.5/2.2 ml |
| No.12 | Angle rotor | 12000 | 13200 | 8×15 ml (pointed) |
| No.13 | Horizontal rotor | 5000 | 3773 | 4×100 ml |
| No.14 | ELISA plate rotor | 4000 | 2200 | 2×2×96 wells |
| No.15 | Angle rotor | 18500 | 23797 | 12×1.5/2.2 ml |
Application
It can be widely used in scientific research, genetic engineering, genetics, life sciences, biochemistry, medical and other units to conduct laboratory tests, biochemical tests, separation of suspensions, etc. The machine is easy to operate and has a fast cooling speed. It is suitable for experiments with small separation volume, high centrifugal requirements and low temperature.
· Cell and bacterial precipitation : suitable for efficient collection and separation of cells and microorganisms.
· Nucleic Acid and Protein Separation : Excellent performance in applications such as DNA/RNA precipitation and protein separation.
· Sample extraction : suitable for experimental operations such as plasmid extraction and lysate separation.
Learn more
**H1750R high-speed desktop refrigerated centrifuge provides you with reliable and efficient laboratory solutions! **
Visit our website www.etallwit.com or contact us now to get the latest product information and technical support. Let us help you with your scientific research, improve experimental efficiency, and achieve scientific breakthroughs!
